Pipe Fiitting

• Application
• other, Gas, Water, Oil, Chemical, Petrochemical, Power Plants

• Bend Radius
• As per standard

• Coating Type
• Anti-rust Oil Coated or Black Painted

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 1/2 Inch to 24 Inch

• Flexibility
• Rigid

• Length
• Custom Length as per requirement

• Material
• Other , Mild Steel (MS), Carbon Steel (CS)

• Material Grade
• A234 WPB, IS 1239, IS 3589

• Outer Diameter
• 21.3 mm to 609.6 mm

• Product Type
• Other, MS CS Tee

• Rated Pressure
• Up to 20 Bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASTM/ASME A234, ANSI B16.9

• Surface Treatment
• Other, Galvanized, Black Painted

• Temperature Range
• -20C to +425C

• Tensile Strength
• 380 MPa (min)

• Thickness
• 2 mm to 12 mm (varies by size)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fittings, Plumbing, Industrial Applications

• Yield Strength
• 240 MPa (min)

• Application
• other, Oil & Gas, Water Supply, Industrial, Plumbing

• Bend Radius
• 1D/1.5D/2D

• Coating Type
• Black Paint / Anti-corrosive

• Color
• Black / Grey

• Connection
• Other, Welded

• Connection Type
• Butt Weld / Socket Weld

• Diameter
• 15 mm to 600 mm

• Flexibility
• Rigid

• Length
• As per requirement

• Material
• Mild Steel

• Material Grade
• MS IS 2062 / ASTM A106

• Outer Diameter
• 15 mm to 600 mm

• Product Type
• Other, MS Elbow

• Rated Pressure
• Up to 20 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, IS 1239 / ASTM A234

• Surface Treatment
• Other, Black Painted / Galvanized

• Temperature Range
• -20C to 300C

• Tensile Strength
• 370 MPa (min)

• Thickness
• 3 mm to 8 mm

• Thread Type
• Plain / NPT

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting / Industrial Piping

• Yield Strength
• 240 MPa (min)

• Application
• other, Oil & Gas, Chemical, Water Supply, Food and Beverage

• Bend Radius
• 1.5D (approx. 75 mm)

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 2 inch

• Flexibility
• Rigid

• Length
• 75 mm

• Material
• Stainless Steel

• Material Grade
• 304 / 316

• Outer Diameter
• 2 inch (50.8 mm)

• Product Type
• Other, Stainless Steel Fitting

• Rated Pressure
• Up to 25 bar

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Elbow/Bend (as shown)

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 520 MPa

• Thickness
• 3 mm

• Thread Type
• Not Applicable (Welded Type)

• Tolerance
• 0.05 mm

• Usage
• Pipe line connection, industrial applications

• Yield Strength
• 205 MPa

• Application
• other, Dairy pipeline systems

• Bend Radius
• 1.5D or as specified

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Welded / Clamped

• Connection Type
• Tri-clover, Butt-weld, SMS union

• Diameter
• 1 to 4 (25.4 mm to 101.6 mm)

• Flexibility
• Rigid

• Length
• Customized

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25.4 mm - 101.6 mm

• Product Type
• Other, Dairy Bend

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (for clamped connections)

• Section Shape
• Round

• Shape
• Other, Bend (Elbow)

• Standard
• Other, DIN, SMS, 3A, ISO

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• >520 MPa

• Thickness
• 1.5 mm - 3 mm

• Thread Type
• Not threaded

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food & Beverage, Pharmaceutical industries

• Yield Strength
• >210 MPa

• Application
• other, Water, Gas, Oil, Chemical Conveyance

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Screwed End

• Diameter
• 15 mm to 100 mm

• Flexibility
• Rigid

• Length
• 50 mm to 300 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1/2 inch to 4 inch

• Product Type
• Other, Pipe Nipple

• Rated Pressure
• 150 PSI

• Sealing Type
• Threaded Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A312 / A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa min.

• Thickness
• 2.5 mm

• Thread Type
• BSP / NPT

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Piping, Industrial Applications

• Yield Strength
• 205 MPa min.

• Application
• other, Plumbing, Industrial, Petrochemical

• Bend Radius
• As per standard

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld

• Diameter
• 15 mm to 600 mm

• Flexibility
• Rigid

• Length
• Varies as per size

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L / SS202

• Outer Diameter
• 15 mm to 600 mm

• Product Type

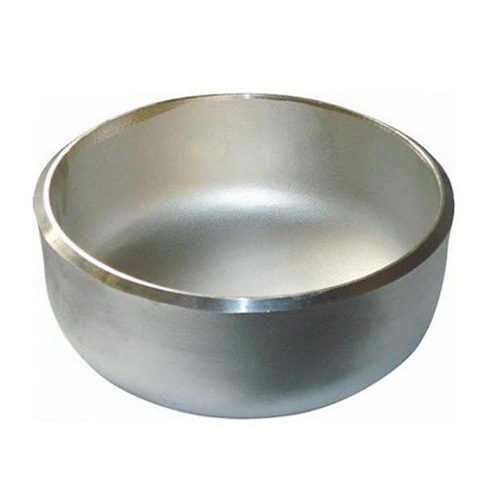

• Other, Stainless Steel Cap

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished / Mirror / Satin Finish

• Temperature Range
• -20C to +450C

• Tensile Strength
• 520 MPa minimum

• Thickness
• 1 mm to 10 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting, End Closure

• Yield Strength
• 205 MPa minimum

• Application
• other, Machinery, Engineering, Construction

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 80 mm

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 80 mm

• Product Type

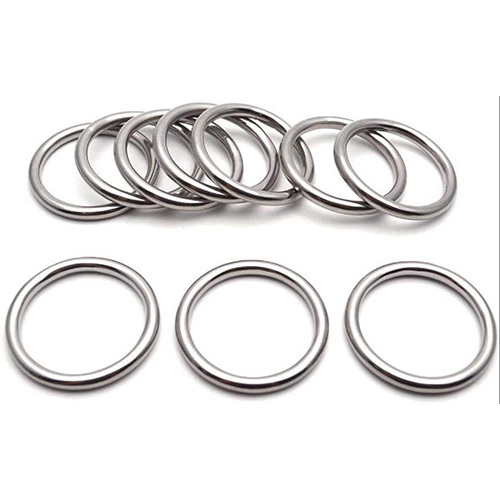

• Other, Stainless Steel Ring

• Rated Pressure
• PN16

• Sealing Type
• Metal to metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A240 / A276

• Surface Treatment
• Other, Polished

• Temperature Range
• -50C to 250C

• Tensile Strength
• 520 MPa

• Thickness
• 5 mm

• Tolerance
• 0.05 mm

• Usage
• Industrial, Mechanical Components

• Yield Strength
• 205 MPa

• Application
• other, Food, Dairy, Beverage, Pharmaceutical, Chemical Industries

• Coating Type
• None (Polished Finish)

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Welded End

• Diameter
• Available from 1 to 4 (25.4 mm to 101.6 mm)

• Flexibility
• Rigid

• Length
• Standard and as per requirement

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25 mm to 101.6 mm (various sizes available)

• Product Type
• Other, SMS Weld Union

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Rubber Gasket / EPDM / Silicone / Viton

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, SMS (Swedish Milk Standard)

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +180C

• Tensile Strength
• 500 MPa (for SS304/316)

• Thickness
• 2 mm to 5 mm (customizable)

• Thread Type
• Not Applicable (Welded)

• Tolerance
• 0.1 mm

• Usage
• Pipe Jointing / Food Processing / Dairy & Beverage Industries

• Yield Strength
• 210 MPa (for SS304/316)

• Application
• other, Food, Beverage, Pharmaceutical, Chemical Industry

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Clamp

• Connection Type
• Tri-Clamp (Tri-Clover)

• Diameter
• Varies as per Design

• Flexibility
• Rigid

• Length
• Custom / As per requirement

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 to 12 (12.7 mm to 304.8 mm)

• Product Type
• Other, TC Clamp (Tri-Clamp) / Sanitary Clamp

• Rated Pressure
• 10 bar (subject to clamp size and material)

• Sealing Type
• Gasket (Silicone, EPDM, PTFE)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, DIN, SMS, ISO, 3A

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -20C to 120C

• Tensile Strength
• 520 MPa (SS304)

• Thickness
• 1.5 mm - 4 mm (as per requirement)

• Thread Type
• N/A (Clamped connection)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting, Sanitary Connections

• Yield Strength
• 205 MPa (SS304)
